Single wall paper cup size range from 3oz to 32oz lined up by height: CupsPak size guide
Buyer's Guide

Paper Cup Sizes Chart: oz and mm, Both 8 oz Rims

Henry — Head of Marketing · Reviewed by Austin, Product Manager

July 9, 2026 · 10 min read · Updated November 17, 2026

Use this paper cup sizes chart to order by rim, not by the ounce on the menu. Hot cups run from 3 oz (90 ml, Φ57 mm) to 32 oz (950 ml, Φ105 mm). The 8 oz cup is sold on both an 80 mm rim and a 90 mm rim. The 10 oz model is 90 × 60 × 94 mm. The default 6 oz is 73 × 48 × 82 mm. An optional 6 oz is 80 × 53 × 78 mm, and it is not the default.

Compare walls on the paper cups page, get a quote for the size and wall, or request samples of the rims you are shortlisting. Stock samples usually ship in 3–5 working days.

How paper cup sizing actually works

Three things suppliers assume you know (and buyers often don’t):

  1. “oz” means US fluid ounces, measured to the brim. A “12oz” cup holds 360ml filled to the very top. With a realistic 10 to 15mm headroom, the practical serving is 300 to 320ml. If your recipe card says “350ml serve”, you need a 16oz cup, not a 12oz: getting this wrong is the most common sizing mistake we see in first orders.
  2. Rim diameter is the compatibility key. Lids, sealing films and sleeves all match the rim, not the volume. That’s why the charts below lead with Φ (diameter): check that column before anything else.
  3. Heights vary more than diameters. Manufacturers keep rims standard (57 / 62 / 73 / 80 / 90 / 105mm) and stretch the cup taller for bigger volumes. It keeps lid tooling universal and shelf space predictable.

For a custom bulk program, compare paper cup constructions before selecting accessories. Start with the cup model and wall type, then add the lid or sleeve requirement; an ounce label alone does not confirm a system fit.

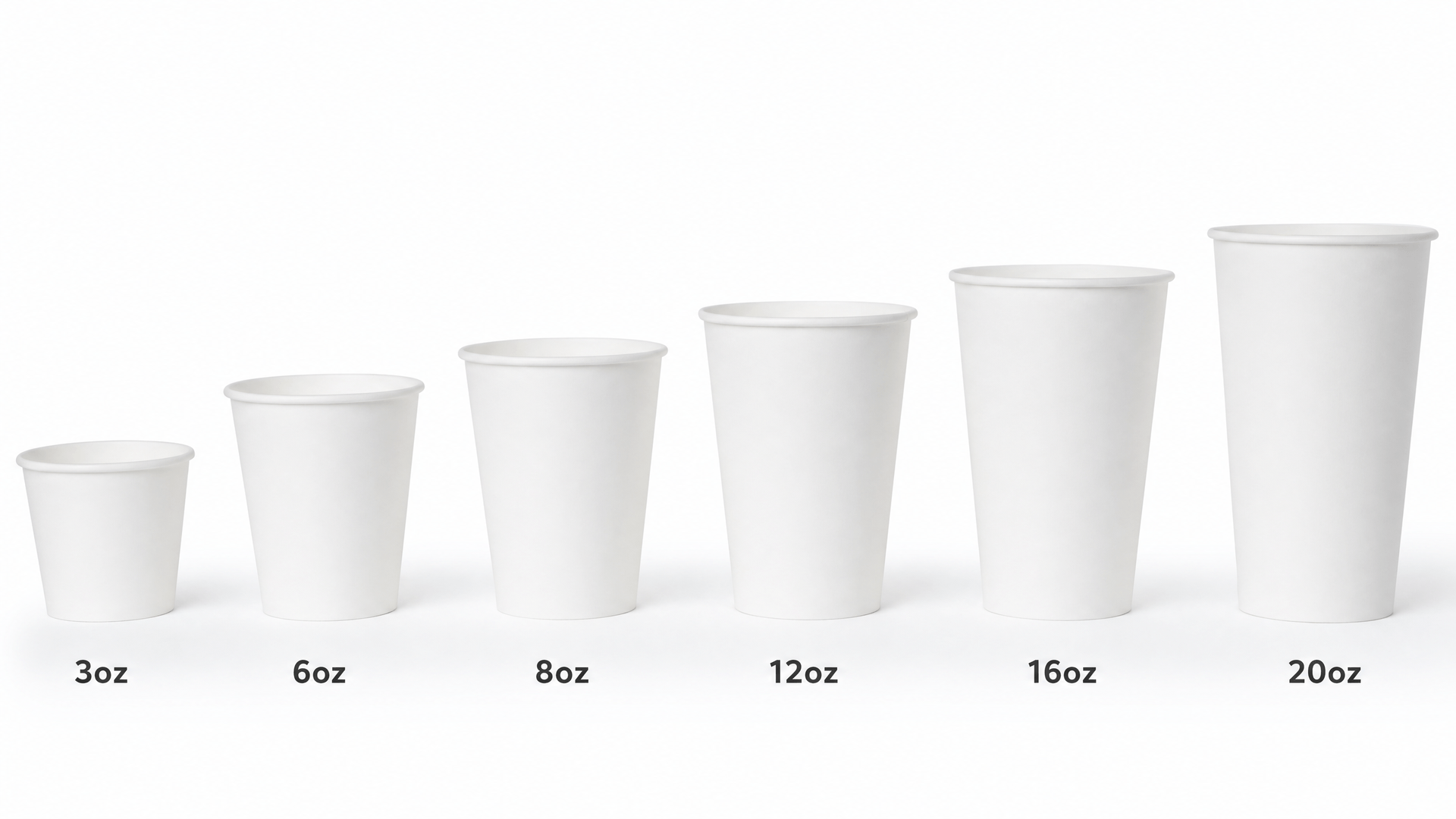

Single wall paper cups from 3oz to 32oz, height grows, rim diameters stay standard

Hot cup sizes chart (single wall, 3oz-32oz)

Linked rows are the public purchase-page models. Single wall runs 3–32oz, double wall 6–22oz, and ripple wall 6–20oz. On a matched model the rim is shared. 6oz and 8oz are the exceptions in this table. Pcs/box below is single wall.

SizeVolume (brim)Rim ØBase ØHeightLidSW pcs/box
3oz90ml57mm39mm57mm57mm*1,000
4oz110ml62mm45mm60mm62mm*1,000
6oz180ml73mm48mm82mm73mm1,000
7oz200ml73mm53mm79mm73mm1,000
8oz Φ80230–240ml80mm55mm90mm80mm1,000
8oz Φ90210–220ml90mm58mm84mm90mm1,000
10oz350ml90mm60mm94mm90mm1,000
12oz360ml90mm58mm110mm90mm1,000
16oz500ml90mm58mm137mm90mm1,000
20oz580ml90mm60mm150mm90mm1,000
22oz650ml90mm60mm170mm90mm1,000
32oz950ml105mm—180mm105mm*500

* 3oz/4oz cups are typically served lidless (espresso, tasting, vending); 105mm lids are a lower-volume stock item: confirm availability when ordering 32oz.

Single-wall cartons

Every confirmed single-wall size below packs 1,000 cups per box. These outer cartons are single wall only. Do not apply them to double wall or ripple wall.

SizePcs/boxOuter carton
3oz1,000290×235×330mm
4oz1,000315×255×335mm
6oz1,000375×305×430mm
7oz1,000375×305×370mm
8oz1,000405×325×400mm
10oz1,000455×365×455mm
12oz1,000455×365×490mm
16oz1,000455×365×560mm
20oz1,000455×365×600mm
22oz1,000455×365×620mm

The 8oz row is the single-wall outer carton, 405×325×400mm. From those outer millimetres, an 8oz carton is about 0.053m³, a 12oz carton about 0.081m³, and a 16oz carton about 0.093m³, each holding 1,000 cups.

Rim diameter, not volume, decides the lid

Read the rim column before the ounce column. The 3oz cup sits alone on a 57mm rim. The Φ90 8 oz shares that 90 mm rim with 10 oz through 22 oz, so that menu runs one lid family instead of one lid per ounce.

RimWhat sits on itLid
57mm3ozIts own rim. Sample-fit.
62mm4ozIts own rim. Sample-fit.
73mm6oz and 7oz single wallSame top diameter, different bodies. Sample-fit the cup you chose.
80mm8oz Φ80. An 80 mm 6 oz (53 mm base, 78 mm tall) is available as an alternative to the default 73 mm mold.Φ80mm family. The default 6 oz mold does not use this lid.
90mm8oz Φ90, 10oz through 22ozOne Φ90mm family. Still sample-fit.
105mm32oz series rowConfirm availability with the quote.

Reading the table like a buyer: the public 6oz and 7oz do not share the 8oz lid. The Φ80 8oz is one lid line. Everything on Φ90mm, including the wider 8oz, is the other. That’s deliberate, and it’s why a well-planned menu rarely needs more than two lid sizes once the 8oz rim is chosen. The coffee cup lids guide and the lid range list Φ80mm and Φ90mm as the two standard hot diameters, with a Φ73mm size for some 6–7oz cups. Sleeves follow the same rim, then the taper.

Lids, sealing films and sleeves all match the rim, never the volume. Two cups described with the same ounce figure can sit on different rims and take different lids, which is why the ounce label alone is not enough to order a lid against.

Brim capacity against what you actually pour

The ounce rating is brim-full capacity, measured to the very top of the cup. Real service leaves 10 to 15mm of headroom for the lid, the foam and the carry, so practical capacity lands roughly 15% below the rating.

A 12oz cup holds 360ml to the brim and serves about 300 to 320ml. If a recipe card says “350ml serve”, that is a 16oz cup, not a 12oz. It is the most common sizing mistake we see on first orders, and it is the reason to specify in milliliters rather than in ounces.

Double wall and ripple wall: same sizes, different jackets

Double wall runs 6oz to 22oz and ripple wall runs 6oz to 20oz. Where the purchase page lists the same model, the rim is shared, so the lid does not change with the wall. Check 6oz, the two 8oz profiles, and 10oz in the chart before treating a series row as that model. Practical consequences:

  • Lids interchange on a matched rim. Your 90mm lids fit single, double and ripple 12oz cups alike.
  • Single wall is 1,000 per box in the carton table above. Double wall and ripple wall list 500 per box on the series tables.
  • For 12oz and 16oz the brim is the same across walls (360ml and 500ml). 10oz is 350ml, 20oz is 580ml and 22oz is 650ml. Switching construction changes the hand-feel and the freight bill. For choosing between the three, see our wall construction comparison.

Cold cup sizes chart (PP injection, 90mm)

From our PP injection cup line, the bubble tea standard, with weights that matter for sealing machines:

SizeVolumeRim ØHeightBottom ØWeightPcs/carton
12oz360ml90mm98mm58mm~10.5g500
16oz500ml90mm136mm58mm~15g500
20oz600ml90mm155mm55mm~17g500
24oz700ml90mm180mm55mm~22g500

The whole PP range holds to Φ90mm because that’s what standard sealing machines take: if you run a bubble tea shop, confirm your sealer’s film width before ordering anything else. PET cold cups cover 7oz to 32oz for clarity-first applications; ask for the PET dimension sheet with your quote.

Ice cream cup sizes chart (2oz-20oz)

Ice cream cups follow a different geometry, short and wide for scooping, with diameters that grow along with volume:

SizeVolumeRim ØBase ØHeightTypical use
2oz60ml72mm62mm42mmTasting / sampling spoon cup
3oz90ml75mm60mm45mmMini dessert
4oz120ml76mm61mm50mmSingle scoop
5oz150ml86mm72mm50mmGenerous single scoop
6oz180ml90mm75mm58mmDouble scoop
8oz240ml96mm80mm52mmDouble scoop plus toppings
12oz360ml105mm85mm60mmLarge serving
16oz480ml105mm85mm75mmJumbo / sundae
20oz600ml120mm95mm80mmParty / takeaway

Note how a 4oz ice cream cup (Φ76) is nothing like a 4oz hot cup (Φ62), same rating, completely different vessel. This is exactly why quoting “4oz cups” without specifying the product family produces wrong quotes and wrong lids.

Snack cup sizes chart (8oz-16oz)

Paper snack cups for fries, popcorn and fried chicken, taller than ice cream cups, narrower rims than hot cups:

SizeVolumeRim ØBottom ØHeightLid sizePcs/carton
8oz240ml75mm56mm100mm75mm flat1,000
12oz360ml80mm60mm120mm80mm flat1,000
16oz480ml80mm60mm140mm80mm flat1,000

The 12oz/16oz snack cups share an 80mm rim with each other and with the Φ80 8oz hot cup. They do not match the public 73mm 6oz hot mold, and the snack lid is a flat lid, so sample-fit before treating it as the hot-cup lid. Snack cups are 50,000 pcs per size, not the 20,000-piece hot-cup minimum.

oz → ml conversion: exact vs industry-rounded

One more trap for spec sheets: 1 US fluid ounce = 29.57ml exactly, but the industry rounds cup volumes to friendly numbers. Both columns below are “correct”: just don’t mix them in one purchase order:

RatingExact conversionIndustry standard
8oz236.6ml240ml
12oz354.9ml360ml
16oz473.2ml480-500ml
24oz709.8ml700-720ml

When a spec sheet says a 16oz cup is “500ml”, that’s the brim-full industry figure, not a conversion error. Our 8oz purchase page lists 230–240ml on Φ80 and 210–220ml on Φ90, which is why the hot-cup chart does not use a single 240ml. What matters for compliance documents and fill-line calibration is the millimeter dimensions, which is why every chart on this page leads with them.

Bowl sizes at a glance

Round paper bowls (Φ top × bottom × height) and flat-rim salad bowls:

TypeVolumeDimensions
Ripple paper bowl16ozΦ115 × 88 × 75mm
Ripple paper bowl20ozΦ115 × 78 × 103mm
Ripple paper bowl24ozΦ150 × 128 × 60mm
Salad bowl (flat rim)500mlΦ150 × 130 × 45mm
Salad bowl (flat rim)750mlΦ150 × 128 × 60mm
Salad bowl (flat rim)900mlΦ184 × 165 × 49mm
Salad bowl (flat rim)1000mlΦ150 × 129 × 78mm
Salad bowl (flat rim)1300mlΦ184 × 160 × 66mm

Bowl lid pairing follows the same rim-diameter rule: Φ150 bowls share one lid family, Φ184 another. Soup programs run 8oz to 64oz: see soup containers for the hot-liquid certified range.

Standard paper cup sizes, size by size

The menu-planning shortcut, from hundreds of client size consultations. Where a brim volume is listed above, the practical serve is roughly 15% less.

3 oz paper cup — 90 ml, Φ57 mm rim

The smallest standard size, 3oz: 57mm rim, 39mm base, 57mm tall, on a rim of its own. Espresso, tastings and vending. Normally served without a lid, since Φ57 lids are not a stock item.

4 oz paper cup — 110 ml, Φ62 mm rim

4oz is espresso, cortado and tasting pours: 62mm rim, 45mm base, 60mm tall. Like the 3oz it sits on a rim nothing else uses, and it is usually specified lidless.

6 oz paper cup — 180 ml, Φ73 mm rim

6oz single wall is 180ml, 73mm rim, 48mm base, 82mm tall. A short coffee or a children’s drink. An 80 mm rim, 53 mm base and 78 mm height is available as an alternative, so measure the rim before you reuse an 8oz lid.

7 oz paper cup — 200 ml, Φ73 mm rim

7oz single wall is 200ml, 73mm rim, 53mm base, 79mm tall. Same rim diameter as the 6oz, different cup. Office drink stations and short tea service.

8 oz paper cup — Φ80 mm or Φ90 mm

The compact “small”, and the size with two cups. 8oz on Φ80mm is 230–240ml, 55mm base, 90mm tall, in single, double and ripple wall. The Φ90mm 8oz is 210–220ml, 58mm base, 84mm tall, in single and double wall only. The lid follows the rim you pick. This is the smallest size most cafés actually stock, and the first size where “8oz lids” without a rim ships the wrong part.

10 oz paper cup — 350 ml, 90 × 60 × 94 mm

10oz is 350ml, 90mm rim, 60mm base, 94mm tall. It serves a short latte, and it is where a Φ90 lid covers this cup and the sizes above it.

12 oz paper cup — 360 ml, Φ90 mm rim

The global default “medium” latte or americano. 12oz is 360ml, 90mm rim, 58mm base, 110mm tall, serving about 300 to 320ml. If you stock a single hot size, stock this one.

16 oz paper cup — 500 ml, Φ90 mm rim

The “large” hot cup and the entry size for iced drinks. 16oz is 500ml, 90mm rim, 58mm base, 137mm tall. Same Φ90 lid as the 12oz, so the two most-ordered sizes cost one lid line between them. The pair is compared in 12oz and 16oz paper cups.

20 oz paper cup — 580 ml, 90 × 60 × 150 mm

Large hot drinks on the 20oz model: 580ml, 90mm rim, 60mm base, 150mm height, in single, double and ripple wall. The 22oz cup is 650ml, 90 × 60 × 170mm on the same rim, in single and double wall. Ripple wall stops at 20oz.

32 oz paper cup — 950 ml, Φ105 mm rim

Sharing sizes and cold-brew style serves, 180mm tall. It steps up to a Φ105 rim, which is a lower-volume stock item — confirm lid availability before you commit to it.

Two insider notes. First, “small/medium/large” is not standardized: a US “medium” is often 16oz while a European “medium” is 12oz; print sizes on your menu in oz or ml to avoid staff confusion across locations. Second, if your menu spans hot and cold, standardizing on Φ90mm across both (10oz+ hot cups and all PP cold cups) collapses your lid inventory to a single diameter.

Accessory compatibility by cup size

The final sizing layer buyers forget until the first order arrives: which accessories physically fit which cups:

AccessoryFitsSizing rule
Cup sleevesHot cups, by taperSized to the cup’s rim and taper. The sleeve size chart has the three standard blanks. 10oz and 22oz are the sample-first cases.
Sip / dome lidsBy rim: 73mm, 80mm or 90mmOne lid family per rim. Name the 8oz rim. 6oz and 7oz share 73mm and still need a sample-fit.
Sealing filmΦ90mm PP cupsMachine-applied; confirm your sealer’s film width before ordering
Cup carriers8oz-32ozRing openings accommodate the taper; 2-cup and 4-cup formats fit mixed sizes in one carrier
StrawsΦ90mm sealed cupsStandard 6mm for drinks, 12mm wide-bore for boba pearls, check lid cross-slit compatibility

The planning rule that falls out of all these tables: decide your rim diameters first (usually Φ80 + Φ90, and say which 8oz you mean), then choose volumes within those diameters. Every accessory decision downstream becomes automatic.

How to measure a cup you already have

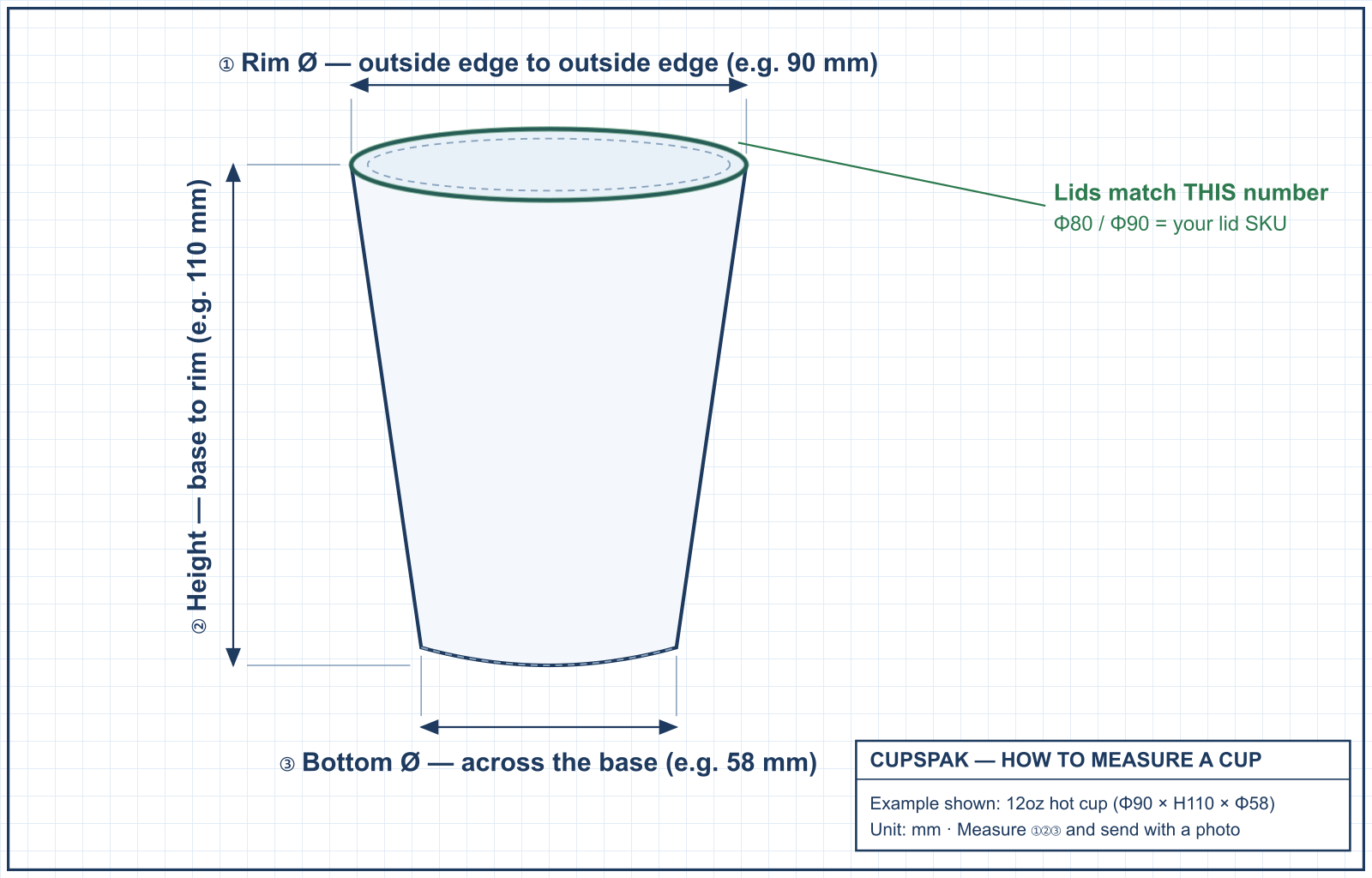

How to measure a paper cup: rim diameter, height and bottom diameter annotated on a 12oz cup profile, CupsPak dimension guide

Matching an existing cup (from a previous supplier) takes three numbers, measured in millimeters:

  1. Rim outer diameter: across the top, outside edge to outside edge, at the rolled rim
  2. Height: base to rim, cup standing upright
  3. Bottom diameter: across the base

Send us those three plus a photo, and we can identify the size and quote a match, including checking whether your current lids will carry over. That’s usually faster than shipping a sample cup across an ocean, though we’re happy to receive one too.

Carton and freight quick math

Every chart above lists pcs/carton because sizing decisions are freight decisions. The single-wall outers are in the carton table above. An 8oz carton (405×325×400mm, 1,000 cups) occupies ~0.053m³; a 12oz carton (455×365×490mm) ~0.081m³; a 16oz carton (455×365×560mm) ~0.093m³. Multiply by your annual volume before falling in love with an oversized cup: upsizing your default from 12oz to 16oz raises the freight bill on every single reorder. Your quote from us always includes carton dimensions and container loading estimates: just ask for the loading plan.

Minimum order for paper cups

Minimums are per size. Mixing 12oz and 16oz does not add up to one minimum. There is no lower tier for unprinted stock paper cups.

CupMinimum
Standard paper cups, printed or plain20,000 pcs per size
Aqueous-coated paper cups50,000 pcs per size
Embossed paper cups50,000 pcs per size
Paper snack cups50,000 pcs per size

A nonstandard single-wall size, meaning a new mold rather than a model on this chart, is published as available above 100,000 pieces. These minimums are paper cups. PP cold cups are a different line, and the PP page states its own. Get a quote with the size, the wall, the coating and the quantity per size.

Frequently Asked Questions

Is a 12oz paper cup the same size everywhere?

The oz rating is consistent (US fluid ounces, brim-full), but rim diameters can differ between suppliers: most run Φ90mm for 12oz, some run Φ80mm. Always confirm the rim diameter when switching suppliers, or your existing lids may not fit.

Do all 90mm cups use the same lid?

Yes. Any Φ90mm rim takes a 90mm lid family (sip lids, dome lids, or sealing film), regardless of cup height, volume, or wall construction. An 8oz cup is also sold on Φ80mm, and that one takes the other lid. See our lid range for the PS, PP, rPET, PLA and paper options per diameter.

Why does my 12oz cup only hold about 10oz of drink?

Because the rating is brim capacity. Real service leaves 10 to 15mm of headroom for lids, foam, and carrying: plan for practical capacity roughly 15% below the rating.

Can I order a custom cup size that’s not on the chart?

A nonstandard single-wall size, a new height or diameter rather than a model on this chart, is published as available above 100,000 pieces. The standard models are 20,000 pcs per size and are the faster path. Check the chart for a near-match before tooling a custom.

What’s the minimum order for standard sizes?

Standard paper cups are 20,000 pcs per size, printed or plain. Sizes cannot be combined to reach that minimum. Aqueous-coated and embossed paper cups are 50,000 pcs per size. Paper snack cups are 50,000 pcs per size. Get a quote for the size and coating you want, or request free samples to verify sizes in hand before committing.


Not sure which size fits your menu? Compare walls on the paper cups page, then get a quote or request a free sample pack with your shortlisted sizes. Stock samples usually ship in 3–5 working days.
