Double Wall Paper Cups Packaging Specialist
Wholesale insulated double wall coffee cups — 6oz to 22oz. Built-in air-gap insulation keeps drinks hot longer and the outer wall cool to hold. No sleeve needed.
Definition
What Is a Double Wall Paper Cup?
A double wall paper cup is a disposable cup constructed from two concentric layers of paperboard with an air gap trapped between them. This design — also called a double-walled cup or insulated paper cup — uses the air pocket as a thermal barrier.
Air is a poor conductor of heat. The trapped air gap between the inner and outer walls slows heat transfer through three mechanisms: conduction (direct contact), convection (air movement), and radiation (heat energy reflection). The result is a cup whose outer surface stays comfortable to hold even when filled with a hot drink — no separate sleeve required.
Double wall cups are the premium choice for specialty coffee shops, hotels, and any brand that wants a cleaner presentation without the added cost and waste of a paper sleeve.
The Science
How Double Wall Insulation Works
Conduction Barrier
The air gap between the two paperboard layers prevents direct heat transfer from the hot inner wall to the outer surface. Your hand stays comfortable even with a 85°C drink inside.
Convection Control
The sealed air pocket between the layers prevents air movement (convection currents), which would otherwise carry heat from the inner wall to the outer surface.
Radiation Reflection
The two paper layers reflect heat energy back toward the beverage, slowing the rate at which your drink cools — keeping it at the right temperature for longer.
Comparison
Double Wall vs Single Wall Paper Cups
| Feature | Single Wall | Double Wall ✓ |
|---|---|---|
| Construction | 1 layer of paperboard | 2 layers + air gap between them |
| Insulation | None — outer wall gets hot | Built-in air-gap insulation |
| Sleeve Required? | Yes — needed for comfort | No — outer wall stays cool |
| Heat Retention | Standard | Superior — drink stays warm longer |
| Outer Wall Temp | Hot to touch | Comfortable to hold |
| Presentation | Standard | Premium — no sleeve clutter |
| Cost per Unit | Lower | Higher (but no sleeve cost) |
| Best For | Low-cost high-volume | Specialty coffee, premium brands |
Need single wall cups instead? View Single Wall Paper Cups →
Size Range

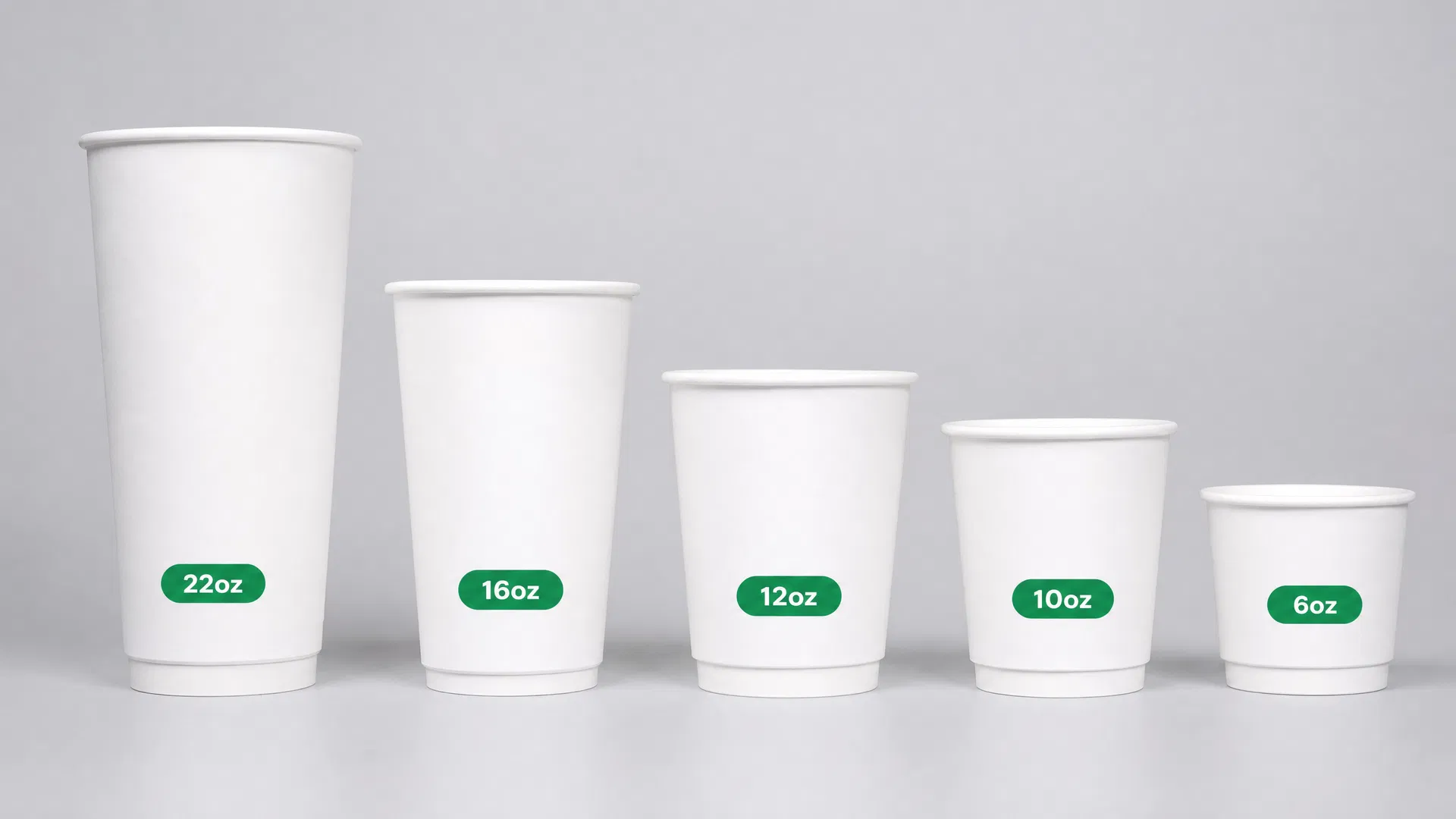

Double Wall Paper Cups — All Sizes
7 listed sizes from 6–22 oz. Confirm color and selected coating availability for the specific SKU with sales. The 20 oz and 22 oz heights are the confirmed 150 mm and 170 mm models on a Φ90 mm rim. The 600 ml and 700 ml figures are previously published series values and still need confirmation for these heights.
6 oz
8 oz
10 oz
12 oz
16 oz
20 oz
22 oz Double Wall Paper Cups: 6–22 oz — Full Size Guide
Exact catalog dimensions. Rim diameter, height, and pcs/box for all 7 standard sizes. Custom sizes available on request.
| Size | Volume | Rim Ø | Height | Pcs / Box |
|---|---|---|---|---|
| 6 oz | Ask with quote | Φ73 mm | 82 mm | 500 |
| 8 oz | 240 ml | Φ80 mm | 90 mm | 500 |
| 10 oz | 300 ml | Φ90 mm | 94 mm | 500 |
| 12 oz | 360 ml | Φ90 mm | 110 mm | 500 |
| 16 oz | 500 ml | Φ90 mm | 137 mm | 500 |
| 20 oz | 600 ml | Φ90 mm | 150 mm | 500 |
| 22 oz | 700 ml | Φ90 mm | 170 mm | 500 |
Confirm color and selected coating availability for the specific SKU with sales. Custom sizes available on request. Pcs/box for stock cups (no printing). The default 6 oz is 73 mm at the rim, 48 mm at the base and 82 mm tall. An 80 mm rim, 53 mm at the base and 78 mm tall, is available as an alternative. Ask with your quote for the 6 oz fill. The 20 oz and 22 oz heights are the confirmed 150 mm and 170 mm models on a Φ90 mm rim. The 600 ml and 700 ml figures in those rows are previously published series values and still need confirmation for these heights.
Custom Printing
Custom Double Wall Paper Cups with Your Brand
Turn your custom double wall paper cups into a brand touchpoint. CupsPak offers full-wrap flexographic printing on the outer wall with up to 7 Pantone spot colors. The double wall construction provides a larger, cleaner print canvas compared to single wall cups with sleeves.
- Up to 7 Pantone spot colors, full-wrap outer wall printing
- Digital proof within 3 business days — no artwork fees
- Physical pre-production sample before bulk order
- MOQ 20,000 pcs per size — printed or plain; sizes cannot be combined to reach the minimum
- Discuss white and kraft base options for the selected SKU
Coating Options
3 Barrier Coatings for Your Material Requirements
Tell sales your target market and material preference so they can check the selected cup model and report coverage.
PE Coating
StandardPolyethylene (PE) coating is the most widely used barrier for hot drink paper cups. A thin PE film is laminated to the inner wall to prevent liquid absorption and leakage. Cost-effective and proven technology with decades of industry use.
Order checks
- Confirm your target market and selected PE specification.
- Ask sales to check the specific cup model and applicable report coverage.
Not sure which coating fits your program? Read our guides: PE vs PLA vs aqueous compared and what aqueous coating actually is.
Industries
Who Uses Double Wall Paper Cups?
Coffee Shops & Cafes
Double wall cups are the premium choice for specialty coffee shops. No sleeve needed — cleaner presentation, lower per-cup cost when sleeve savings are factored in.
Coffee Shop SolutionsRestaurants & QSR
Fast-casual and QSR chains use double wall cups for hot soups, oatmeal, and premium hot drinks. Reduces customer complaints about hot cups.
Restaurant SolutionsHotels & Corporate Catering
Premium double wall cups with custom printing for hotel in-room coffee service, conference catering, and executive dining.
Hotel SolutionsSupermarkets & Retail
Private-label double wall cups for in-store coffee stations and retail hot drink programs. Custom printed with retailer branding.
Retail SolutionsVending & Convenience
Double wall cups for vending machines and convenience store hot drink dispensers. Consistent heat retention improves customer satisfaction.
Vending SolutionsAirlines & Catering
Lightweight double wall cups for in-flight hot beverage service. Superior insulation keeps drinks hot longer during service.
Airline SolutionsWhy CupsPak
Double Wall Cups Wholesale You Can Trust
13+ Years Experience
Double wall cups run on dedicated forming tooling, so quality holds across every order.
Quality Control
Every order goes through our QC inspection before shipment. Discuss any independent inspection requirements with sales before ordering.
3 Coating Options
PE, PLA, and aqueous — tell sales your target market so they can check the selected model, material, and report coverage.
25–30 Day Lead Time
Standard production for custom orders. Rush options available. Sea and air freight worldwide.
FAQ
Double Wall Paper Cups — Frequently Asked Questions
What is a double wall paper cup?
What is the difference between single wall and double wall paper cups?
How does the air gap in a double wall cup work?
What sizes are available for double wall paper cups?
What is the MOQ for custom double wall paper cups?
Are double wall paper cups recyclable?
What printing options are available for double wall cups?
How long does production take for custom double wall paper cups?
