Custom Embossed Paper Cups
Raised 3D textures pressed into every cup — diamond, wave, honeycomb, or your own brand LOGO. Manufactured with precision copper molds for consistent, tactile results at scale.

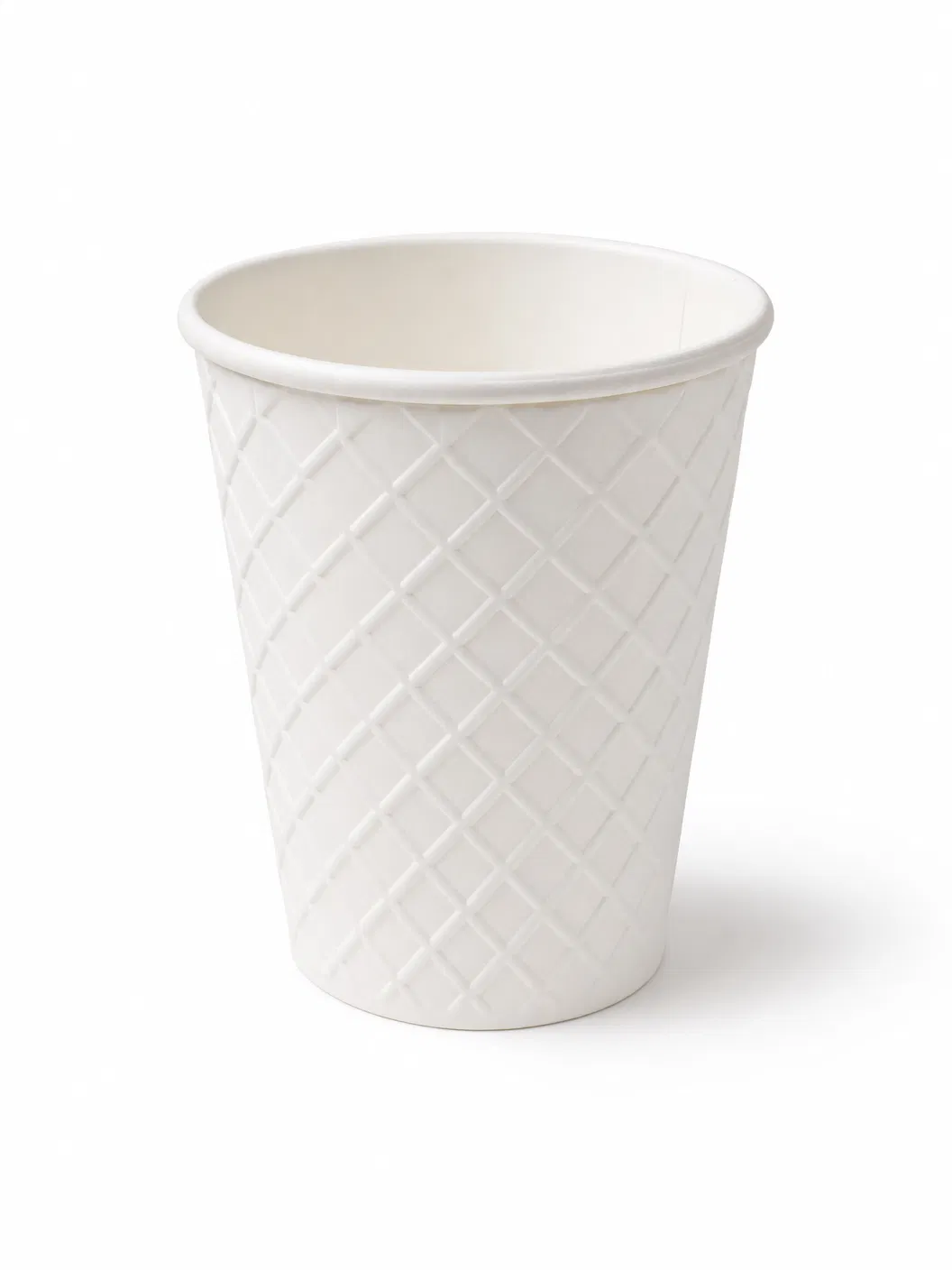

What Is an Embossed Paper Cup?
An embossed paper cup is a disposable cup whose outer paperboard wall has been pressed under controlled heat (80–120°C) and pressure to create a permanent raised three-dimensional texture. The embossing process is purely physical — no inks, coatings, or chemical treatments are involved — making it fully compatible with food-contact safety standards.
The raised texture serves three functional purposes: it improves grip by increasing surface friction, provides a micro air-gap that slightly enhances insulation compared to flat-wall cups, and delivers a premium tactile signal that elevates brand perception at the point of service.
Embossed cups are most commonly used in specialty coffee shops, premium hotels, airlines, and corporate catering — anywhere a brand wants its packaging to communicate quality before the first sip.

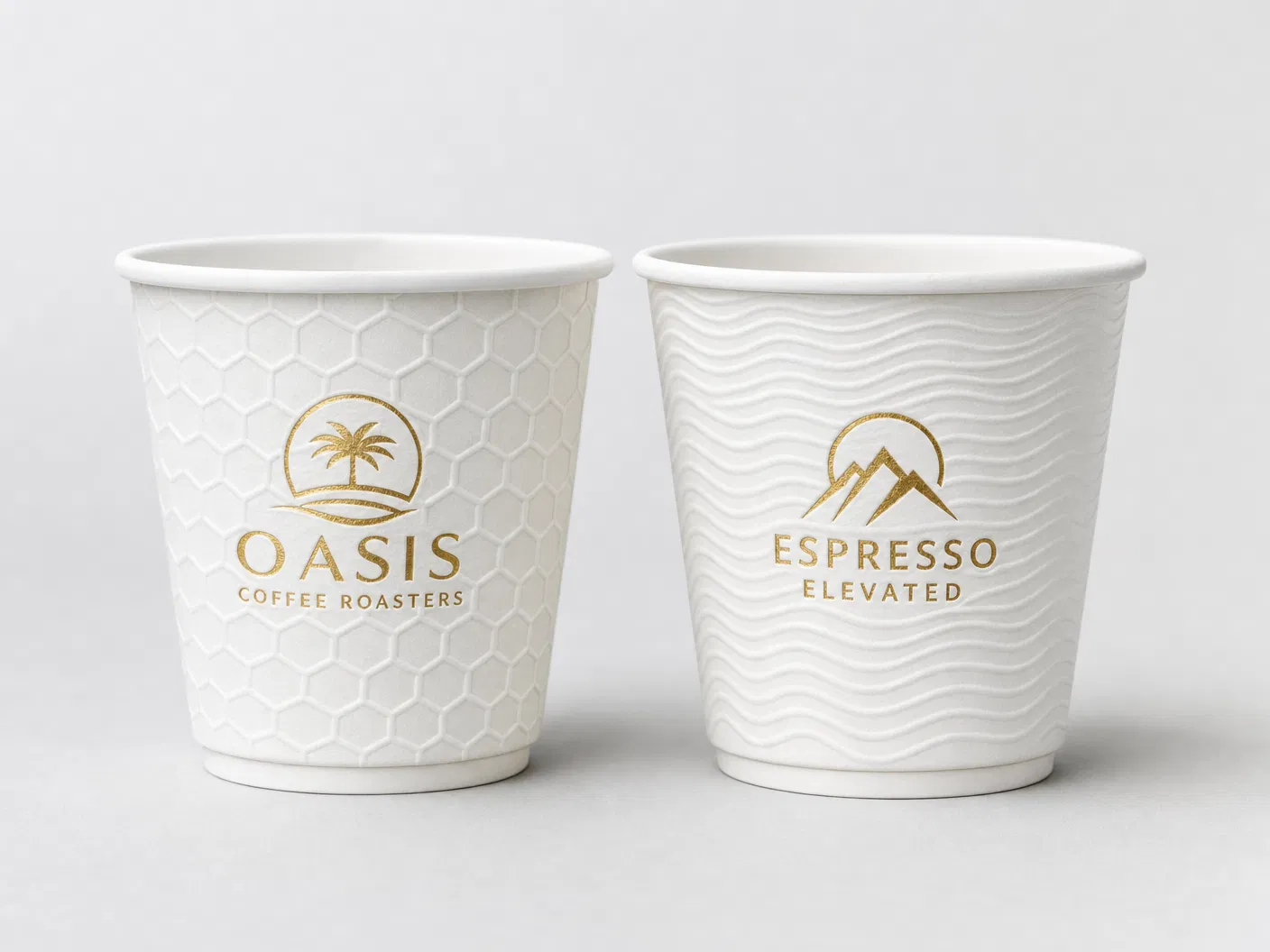

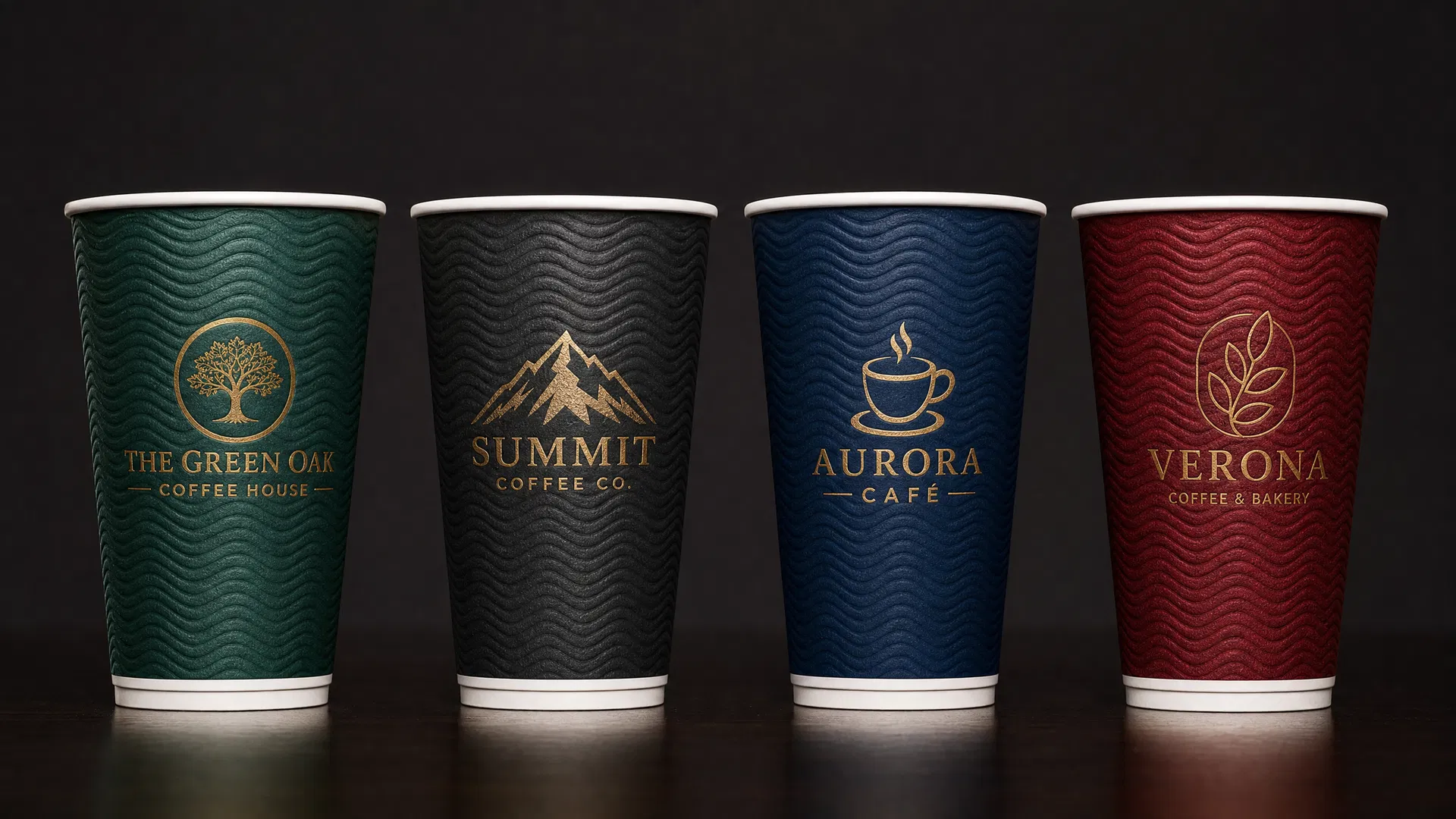

Emboss + Print Finishing Options
Every embossed cup is fully customizable. Combine raised texture with gold foil stamping, spot UV gloss, or full-color flexographic printing to create a cup that is unmistakably yours.
Diamond Grid
Classic lattice — premium, timeless
Wave / Ripple
Flowing horizontal waves — modern, tactile
Honeycomb
Hexagonal cells — structural, distinctive
Leather Grain
Faux-leather texture — luxury feel
Custom LOGO
Your brand mark pressed into every cup
Bespoke Pattern
Fully custom artwork — mold tooling required

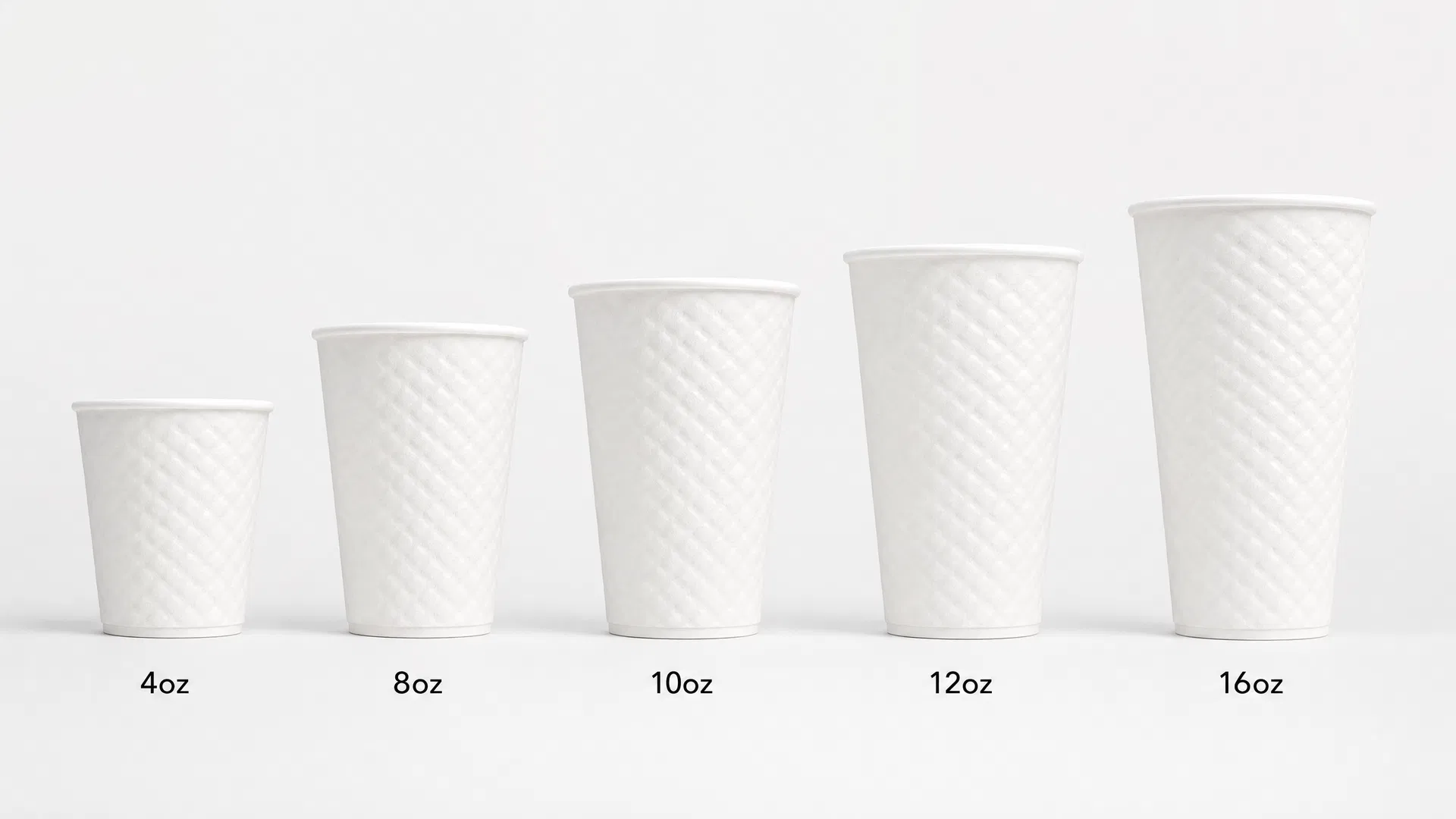

Size Guide & Specifications
Factory catalog dimensions. Lid diameter matches standard PS/CPLA/rPET/PP/Paper lids.
| Volume | Dimension (mm) | Lid Dia. |
|---|---|---|
| 4 oz | Φ62 × 45 × 63 mm | Φ62 mm |
| 8 oz | Φ80 × 56 × 93 mm | Φ80 mm |
| 10 oz | Φ90 × 56 × 100 mm | Φ90 mm |
| 12 oz | Φ90 × 60 × 111 mm | Φ90 mm |
| 16 oz | Φ90 × 56 × 135 mm | Φ90 mm |
| 20 oz | Φ90 × 60 × 150 mm | Φ90 mm |
* Material: White / Kraft / Bamboo. Coating: PE / PLA / PP / Aqueous. Lid options: PS / CPLA / rPET / PP / Paper.
Inner Coating Options
Select the coating that matches your beverage type, sustainability goals, and market requirements.
PE Coating
StandardFood-grade polyethylene inner lining provides reliable moisture barrier for hot beverages up to 90°C. Compatible with all embossed textures. Most cost-effective option for high-volume orders.
Custom Mold Tooling
Every custom emboss pattern — including brand LOGOs and bespoke designs — requires a dedicated precision copper mold. Think of the mold as a stamp and the cup wall as the medium: only a rigid, accurately machined mold produces consistent, sharp texture across millions of cups.
Mold cost is a one-time investment that remains your property and is kept securely on file for repeat orders. The tooling fee varies based on pattern complexity and cup size — contact us for a detailed quote.
PE Film Integrity Notice
Embossing depth must be calibrated to avoid thinning the inner PE coating at texture valleys. All samples undergo a 30-minute hot-water retention test before bulk production approval.
Custom Order Process
Define Requirements
Cup size, emboss pattern, coating type, printing colors, quantity, and delivery timeline.
Submit Design Files
Vector artwork (AI / PDF) with bleed marks and emboss registration guides.
Mold Tooling
Precision copper mold fabricated to your pattern. Lead time: 7–15 business days.
Physical Sample
Inspect texture clarity, print registration, and seal integrity before approving bulk production.
Bulk Production
Full-run production with inline QC. Production lead time: 25–30 days after sample approval.
Delivery
Sea / air freight to your warehouse. Export documentation and compliance paperwork provided.
Minimum Order Quantity
50,000 pcs per SKU
Per SKU (size + pattern combination). Mixed sizes in one order may qualify for lower per-size minimums — contact us.
Who Uses Embossed Paper Cups?
Embossed cups are the preferred choice wherever brand identity and premium presentation matter.
Specialty Coffee & Cafes
Embossed cups elevate the takeaway experience — tactile texture signals quality before the first sip.
Hotels & Corporate Events
Custom-embossed cups with brand LOGO for in-room service, conferences, and VIP catering.
Airlines & Premium Catering
Lightweight, insulating embossed cups for business-class hot beverage service.
Restaurants & QSR
Differentiate your brand at the counter with textured cups that stand out from plain competitors.
Retail & Private Label
Supermarket own-brand hot drink programs — embossed texture adds perceived value.
Brand Launches & Gifting
Limited-edition embossed cups for product launches, seasonal campaigns, and corporate gifting.
Why CupsPak for Embossed Cups?
Precision manufacturing, certified materials, and end-to-end custom support.
13+ Years Experience
Dedicated embossed paper cup production lines. Consistent quality across every order.
Quality Control
Every order passes our QC inspection before shipment. Third-party inspection (SGS, BV) available on request.
3 Coating Options
PE, PLA-compostable, and aqueous — choose the barrier that fits your market requirements and sustainability targets.
15–25 Day Lead Time
Standard production for custom orders. Rush options available. Sea and air freight worldwide.
In-House Mold Tooling
Copper molds fabricated on-site. No third-party delays. Faster iteration on custom patterns.
Full-Service OEM/ODM
From design consultation to bulk delivery — one factory handles mold, print, emboss, and logistics.
Frequently Asked Questions
Everything buyers need to know about custom embossed paper cups.
Ready to Elevate Your Brand with Embossed Cups?
Share your design brief and we will advise on pattern selection, mold cost, and production timeline. Samples available before bulk commitment.
